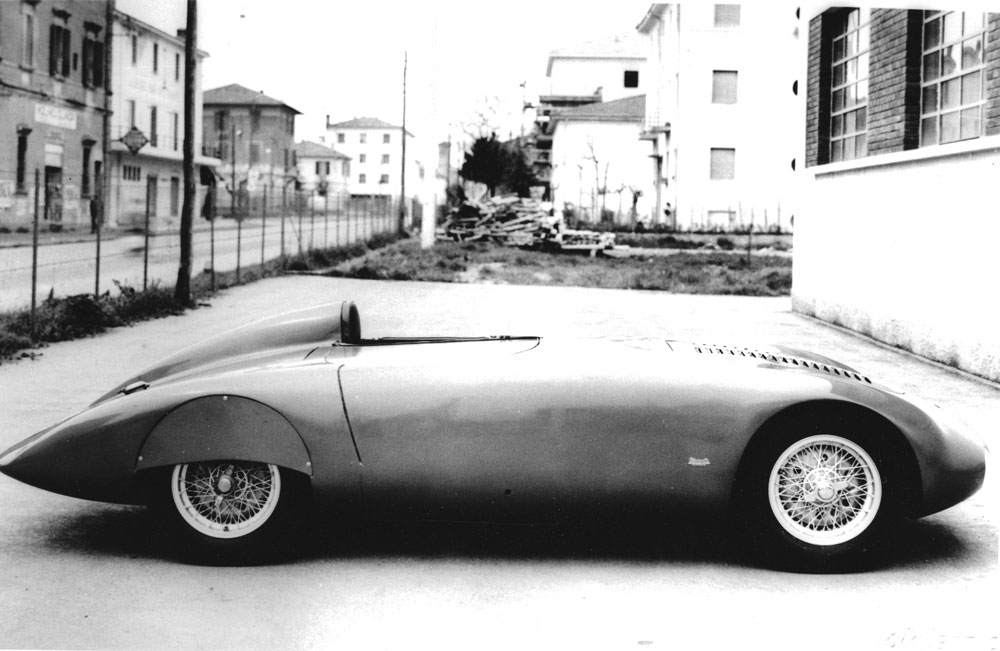

Tipo S-187 (1956-1958)
Type - tipo "S"
Body - 2 Seat Spider
Dry Weight - kg 430
Chasis Measures
Length - mm 2100
Track - Front - mm 1145
Track - Rear - mm 1130
Engine - tipo "187"
Number of Cylinders - 4
Bore - mm 62
Stroke - mm 62
displacment per Cylinder - cm3 187.18
Total Displacmnt - cm3 748.75
Compression - 9.1:1
Max Power - 70 hp @ 7500 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 2 X Weber 32 DCA3
Ignition - Single spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump
Clutch
single disk
Transmission
4 forward + reverse
Chassis
Tubolar with longentudal support tubes
Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar
Rear Suspension
Longentudunal semi independent leaf-spring,
telescopic shocks
Brakes
hydrolic drum brakes 4 wheels
Rims
Borrani or Amadori type, Wired or disk 3.5X14
Tyres
5.20X14
Fuel Tank
50 Liters
Max Speed
180 km/h
