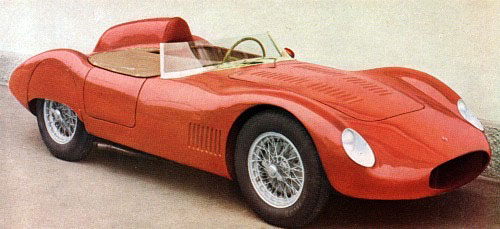

Tipo FS-372 (1957-1959)
Type - tipo "FS"
Body - 2 seat Spider
Dry Weight - kg 510
Chasis Measures
Length - mm 2100
Track - Front - mm 1150
Track - Rear - mm 1130
Engine - tipo "372"
Number of Cylinders - 4
Bore - mm 78
Stroke - mm 78
displacment per Cylinder - cm3 372.71
Total Displacmnt - cm3 1490.86
Compression - 9.5:1
Max Power - 135 hp @ 6600 RPM *DS version: 137 hp @ 6500
Valve Gear - Twin cam, chain driven gears
Carburatoin - 2 X Weber 42 DCO3
Ignition - Twin spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump
Clutch
single disk
Transmission
4 forward + reverse
Chassis
Tubolar with longentudal support tubes
Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar
Rear Suspension
Longentudunal semi independent leaf-spring,
telescopic shocks
Brakes
hydrolic drum brakes 4 wheels
Rims
Amadori type, disk 3.5X15
Tyres
5.00-15 (front) 5.254-15 (rear)
Fuel Tank
80 Liters
Max Speed
238 km/h
