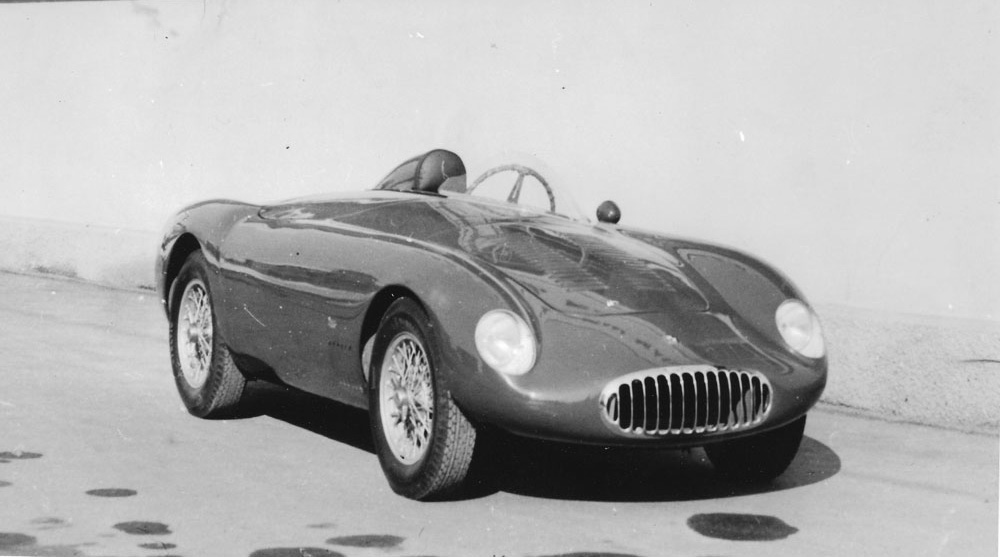

Tipo TN-1500 TN (1955-1956)

Tipo TN-1500 TN (1955-1956)

Type - tipo "TN"
Body - 2 seat Spider
Dry Weight - kg 550

Chasis Measures
Length - mm 2200
Track - Front - mm 1200
Track - Rear - mm 1115

Engine - tipo "1500TN"
Number of Cylinders - 4
Bore - mm 78
Stroke - mm 78
displacment per Cylinder - cm3 372.71
Total Displacmnt - cm3 1490.86
Compression - 9.5:1
Max Power - 125 hp @ 6300 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 2 X Weber 40 DCOA3
Ignition - Twin spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump

Clutch
single disk

Transmission
4 forward + reverse

Chassis
Tubolar with longentudal support tubes

Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar

Rear Suspension
Longentudunal semi independent leaf-spring,
telescopic shocks

Brakes
hydrolic drum brakes 4 wheels

Rims
Borrani type, spoked 4.00X15

Tyres
5.25-15 (front) 5.50-15 (rear) or 5.90-15

Fuel Tank
72 0r 100 Liters

Max Speed
225 km/h
