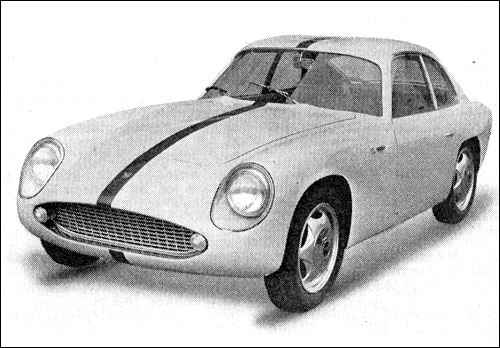

Tipo 1600 GTS (1960-1963)

Tipo 1600 GTS (1960-1963)

Type - tipo "1600 GT"
Body - 2 Seat Coupe
Dry Weight - kg 800

Chasis Measures
Length - mm 2250
Track - Front - mm 1270
Track - Rear - mm 1218

Engine - tipo "1600 GTS"
Number of Cylinders - 4
Bore - mm 80
Stroke - mm 78
displacment per Cylinder - cm3 392.07
Total Displacmnt - cm3 1568.28
Compression - 9.5:1
Max Power - 140 hp @ 7200 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 2 X Weber 45 DCO3
Ignition - Twin spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump

Clutch
single disk

Transmission
4 forward + reverse

Chassis
Tubolar with longentudal support tubes

Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar

Rear Suspension
Longentudunal independent, Elleptic springs
telescopic shocks, anti-roll bar

Brakes
Girling hydrolic 4 wheel disk brakes

Rims
Amadori type, disk 4.5JX15

Tyres
155-15

Fuel Tank
87 Liters

Max Speed
220 km/h
