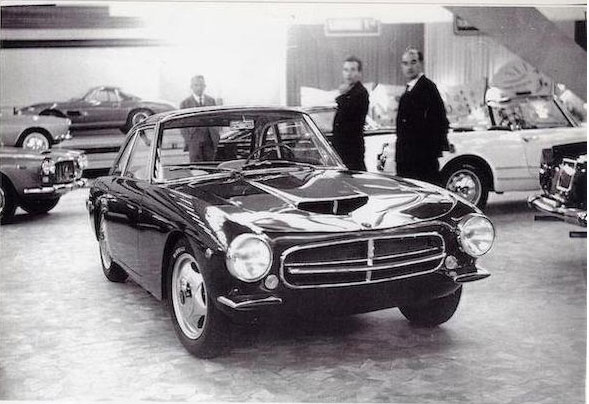

Tipo 1600 GT (1960-1963)

Tipo 1600 GT (1960-1963)

Type - tipo "1600 GT"
Body - 2 Seat Spider or Coupe
Dry Weight - kg 940

Chasis Measures
Length - mm 2250
Track - Front - mm 1270
Track - Rear - mm 1218

Engine - tipo "1600 GT"
Number of Cylinders - 4
Bore - mm 80
Stroke - mm 78
displacment per Cylinder - cm3 392.07
Total Displacmnt - cm3 1568.28
Compression - 9.25:1
Max Power - 95 hp @ 6000 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 1 X Weber 28-36 DCLD3
Ignition - Single spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump

Clutch
single disk

Transmission
4 forward + reverse

Chassis
Tubolar with longentudal support tubes

Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar

Rear Suspension
Longentudunal independent, Elleptic springs
telescopic shocks, anti-roll bar

Brakes
Girling hydrolic 4 wheel disk brakes

Rims
Amadori type, disk 4.5JX15

Tyres
155-15

Fuel Tank
50 Liters

Max Speed
190 km/h
