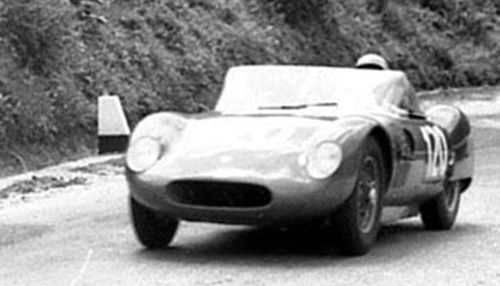

Tipo S-F. 392 (1960)

Tipo S-F. 392 (1960)

Type - tipo "S"
Body - 2 Seat Spider
Dry Weight - kg 540

Chasis Measures
Length - mm 2100
Track - Front - mm 1150
Track - Rear - mm 1130

Engine - tipo "F.392"
Number of Cylinders - 4
Bore - mm 80
Stroke - mm 78
displacment per Cylinder - cm3 392.07
Total Displacmnt - cm3 1568.28
Compression - 9.5:1
Max Power - 140 hp @ 6700 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 2 X Weber 42 DCOE6
Ignition - Twin spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump

Clutch
single disk

Transmission
4 forward + reverse

Chassis
Tubolar with longentudal support tubes

Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar

Rear Suspension
Longentudunal independent, Elleptic springs
telescopic shocks, anti-roll bar

Brakes
Girling hydrolic 4 wheel disk brakes

Rims
Borrani type, wired 3.5X15 (front) 4J-15 (rear)

Tyres
5.25X15 (front) 5.50X15 (rear) *optional 5.9X15

Fuel Tank
80 Liters

Max Speed
240 km/h
