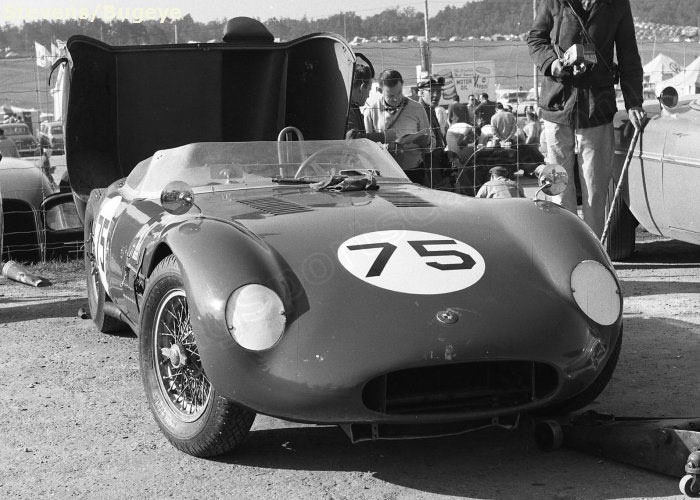

Tipo S-498 (1959-1960)

Type - tipo "S"
Body - 2 Seat Spider
Dry Weight - kg 568

Chasis Measures
Length - mm 2200
rack - Front - mm 1200
Track - Rear - mm 1160

Engine - tipo "498"
Number of Cylinders - 4
Bore - mm 88
Stroke - mm 81.8
displacment per Cylinder - cm3 498.73
Total Displacmnt - cm3 1994.92
Compression - 9.5:1
Max Power - 168 hp @ 6400 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 2 X Weber 48 DCO3
Ignition - Twin spark plug, distributor
fuel Pump - electric pump
Lubrication - electric pump

Clutch
single disk

Transmission
4 forward + reverse

Chassis
Tubolar with longentudal support tubes

Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar

Rear Suspension
Longentudunal semi independent leaf-spring,
telescopic shocks

Brakes
hydrolic drum brakes 4 wheels *1960 Girling disk brakes

Rims
Borrani type, wired 3.5X15 (front) 4.5X15 (rear)

Tyres
5.205X15 (front) 6.00X15 (rear)

Fuel Tank
100 Liters

Max Speed
245 km/h
