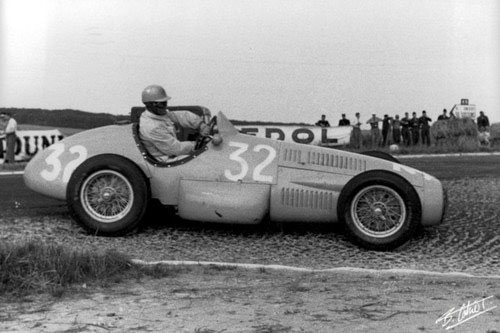

Tipo F2 2000 (1952-1953)

Type - tipo "F2"
Body - Single Seat
Dry Weight - kg 650

Chasis Measures
Length - mm 2250
Track - Front - mm 1260
Track - Rear - mm 1200

Engine - tipo "F2"
Number of Cylinders - 6
Bore - mm 76
Stroke - mm 73
displacment per Cylinder - cm3 331.16
Total Displacmnt - cm3 1986.96
Compression - 12:1
Max Power - 170 hp @ 6500 RPM
Valve Gear - Twin cam, chain driven gears
Carburatoin - 3 X Weber 38 DCO2
Ignition - Single spark plug, Magneto *1953 - Twin spark
fuel Pump - electric pump
Lubrication - electric pump, dry Sump

Clutch
Multiple disk

Transmission
Difffrential transaxle, 4 forward + reverse

Chassis
Tubolar with longentudal support tubes

Front Suspention
Independent, Triangulat A-Arms,
telescopic shocks, Helical springs, anti roll-bar

Rear Suspension
De Dion type, leaf springs, A-arms
telescopic shocks

Brakes
inboard hydrolic drum brakes 4 wheels

Rims
Borrani type, spoked 3.50X16 (front) 4.50x16 (rear)

Tyres
5.25-16 (front) 6.50-16 (rear)

Fuel Tank
135 Liters

Max Speed
225 km/h
